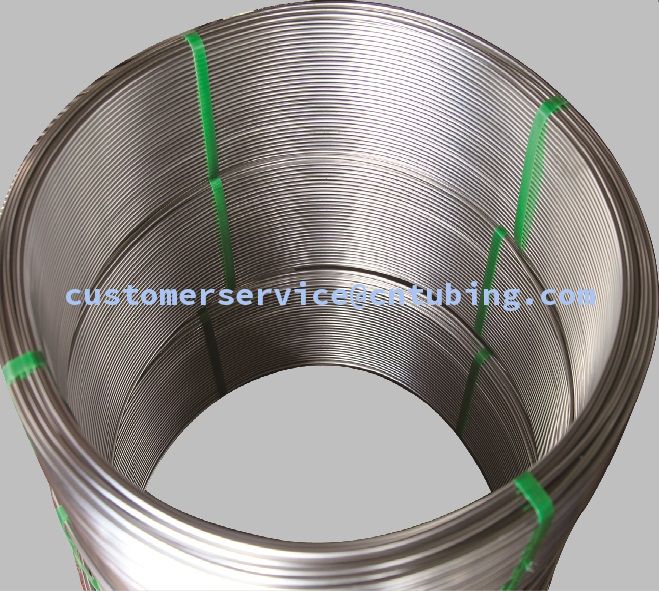

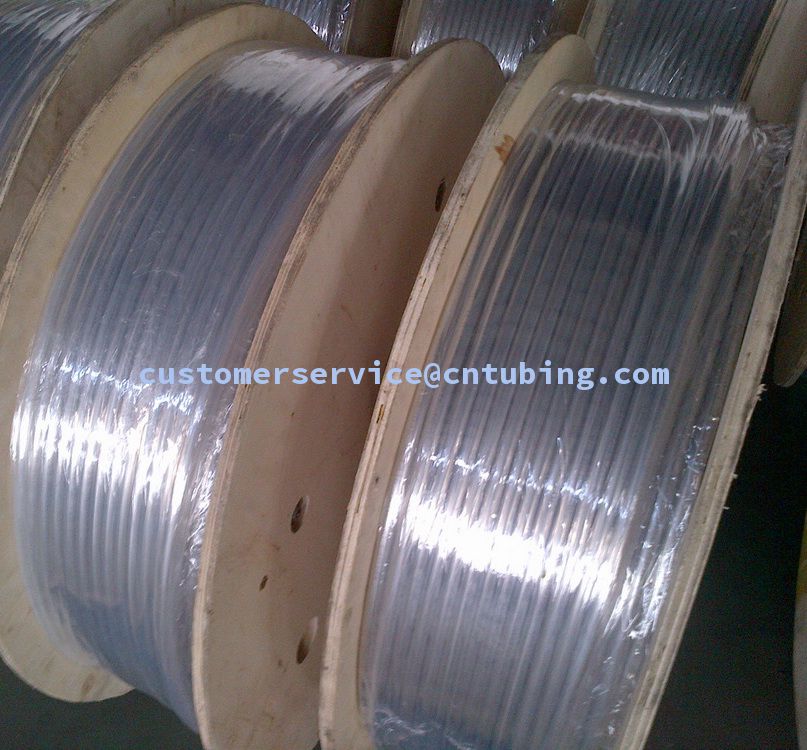

Titanium Coil Tube
Titanium Coil Tube Titanium Coil Tube

Titanium Coil Tube

Product Tags : Welded Titanium Tube
Product Attributes :

Titanium Coil Tube

Grade: Gr1 & Gr2

Process: Welded. In-line bright annealing.

Standard: ASTM B338

OD: 6.0mm to 25.4mm, WT: 0.35mm to 1.5mm

Length: 800 meters per coil max.

100% Penumatic Test with 5.0MPa pressure.

100% In-Line Eddy Current Testing.


Product Description

Titanium Coil Tube

Process: Welded and In-Line bright annealing.

Executive Standard: ASTM B338,

Application: Heat Pump, Heat Exchanger, Titanium Evaporator, Titanium Condenser, Sea Water Desalinization.

Material: Gr1 & Gr2

Specification: Outside diameter: 6.0mm-25.4mm, Wall thickness: 0.35mm-1.5mm, Length: 800 meters per coil max.

Tolerance: As per executive standard requirements, for those tubes which require high precision, we can make according to your own tech requirements.

Advantage: Well-proportioned wall thickness and high precision wall thickness.


Material

Titanium Gr1 & Gr2

Standard

ASTM B338

Outside diameter

6.0 mm-25.4   mm

Wall thickness

0.35 – 1.5   mm

Length

800   meters per coil max

NDT Testing

100% Pneumatic   Testing with 5.0MPa pressure   100%   In-Line Eddy Current Testing

Application

Heat Pump, Heat Exchanger,   Condenser, Titanium Evaporator, Sea Water Desalinization.




Grade

Chemistry   Composition %   (MAX)

Fe

O

H

N

C

Residual each

Residual ttl

Ti

Gr1

0.20

0.18

0.015

0.03

0.08

0.10

0.40

BAL

Gr2

0.30

0.25

0.015

0.03

0.08

0.1

0.40

BAL






Grade

Mechanical Property

T.S.(MPa)

Y.S.(MPa)

A% in 50mm

Gr1

Min 240

138 – 310

Min 24

Gr2

Min 345

275 – 450

Min 20





For any technical information or technical support, please feel free to send us email customerservice@cntubing.com.
