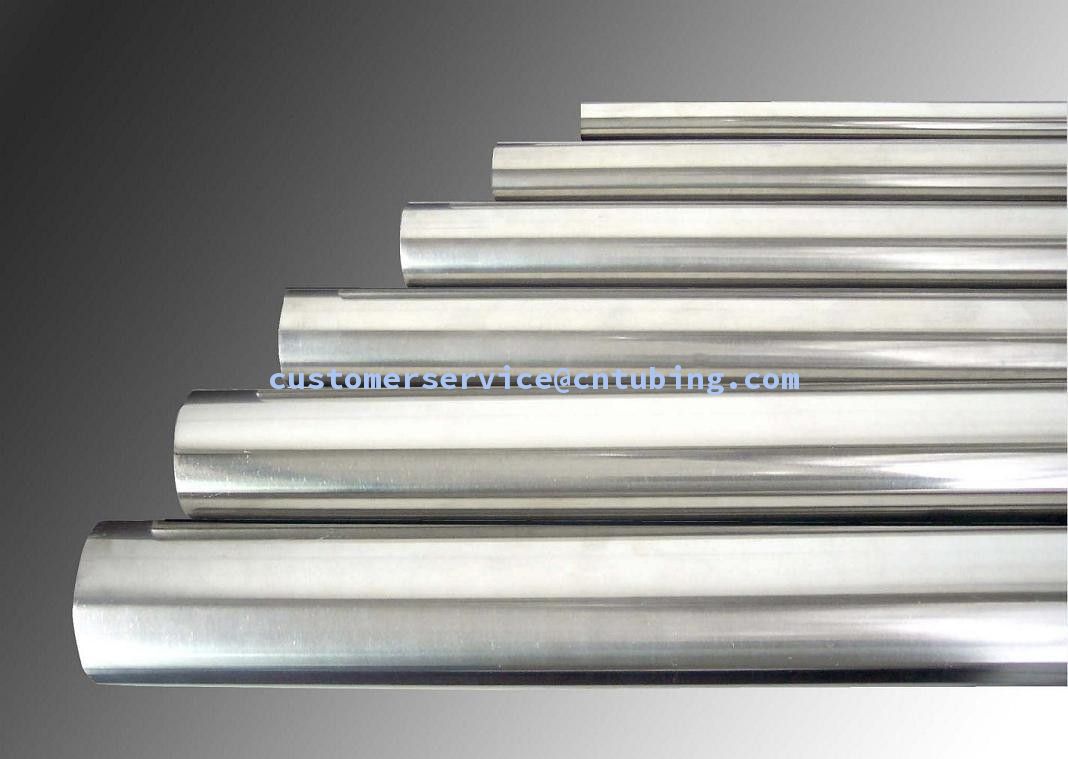

Hastelloy C276 tube For Making Heat Exchanger
Hastelloy C276 tube For Making Heat Exchanger

Hastelloy C276 tube For Making Heat Exchanger

Product ID : JIOUEE - C276
Product Attributes :

Hastelloy C276 tube for making heat exchanger

Grade: Hastelloy C276 (Alloy C276, Inconel 276, 2.4819, UNS N10276)

Standard: ASTM B626

OD: 6.0mm to 80.0mm

WT: 0.3mm to 2.0mm

Length: as per customer's requirements.

100% NDT testing.

Deliver condition: mill finish, polished, bright annealing, solution.

Product Description
  • Hastelloy C276 tube for making heat exchanger:



    1, Executive Standard: ASTM B626

    2,Application: heat exchanger



    3,Material: Hastelloy C276 (Alloy C276, Inconel 276, 2.4819, UNS N10276)



    4, Specification: Outside diameter: 6.0mm-80.0mm, Wall thickness: 0.3mm-2.0mm, Length: according to your requirements.



    5,Tolerance: As per executive standard requirements, for those tubes which require high precision, we can make according to your own tech requirements.



    6,Heat treatment: In-line bright annealing.



    7,Information: Beside the normal executive standard, we could also make the Incoloy840 welded tubing according to your own requirements, such as wall thickness tolerance, hardness, surface requirements and etc by designing different technical requirements and production technology, try our best to support you.



    Strict quality control system ensures the high quality Hastelloy C276 welded tube:



    1, Raw material: Testing principal component strip burr and thickness according to furnace number or materials of each roll.



    2, Tubing welding: Testing length, outside diameter, spherical degree, welding seam and appearance for 50tubes/batch/set or 30 minutes/one time/set



    3, Detecting: ALL.



    4, Hydraulic press(Air Press): Testing all tubes by 10 MPa/holding 10s or 1 MPa/holding 10s.



    5, Final tubes: Testing length, outside diameter, spherical degree, welding seam, appearance and burrs at two ends for all tubes.



    6, Mechanical features: Testing flaring, flattening, reverse bending, tensile strength, yield strength and elongation for 200tubes/bath/set.
