Titanium Welded Tube

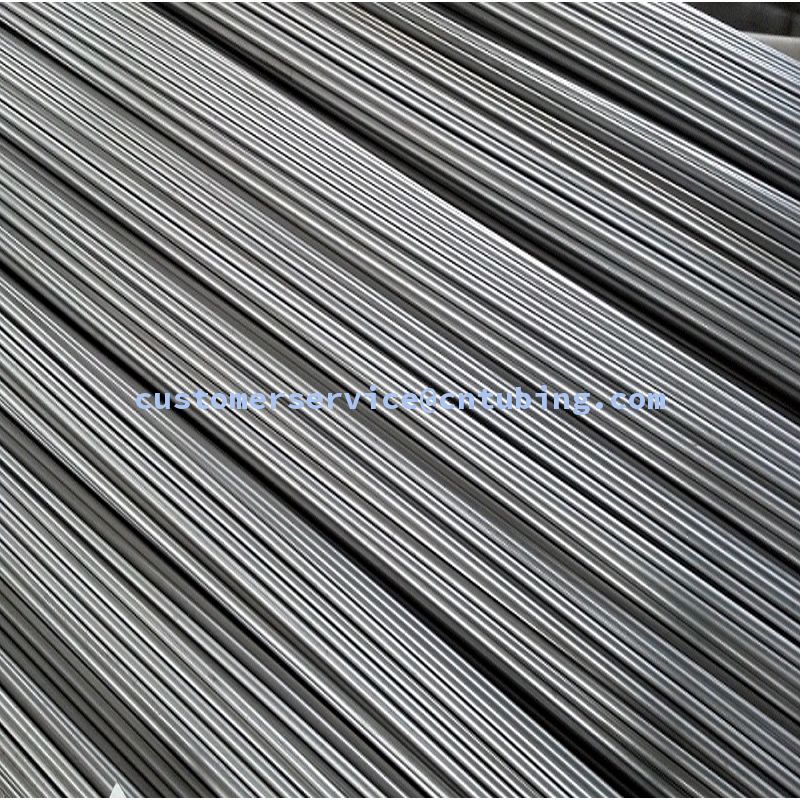

Titanium Welded Tube

Titanium Welded Tube

Product ID : SPSS- Titanium Welded Tube
Product Tags : Titanium Welded Tube
Product Attributes :

Titanium Welded Tube

Grade: Gr1, Gr2

Standard: ASTM B338

OD: 6.0mm to 76.1mm, WT: 0.35mm to 2.0mm

Length: as per customer's requirements.

100% NDT testing acc to your requirements.


Product Description

Titanium Welded Tube

Material: Gr1, Gr2

Executive Standard: ASTM B338, ASTM B862.

Application: Heat Exchanger, Condenser, Sea Water Desalinization, Petroleum, Chemicals, Medical Appliance, Ship Building, Papermaking, Food Processing, Fluid Transportation Piping, Automobile Exhaust Pipe etc.

  • Our titanium weled tube is widely used:

  1. Gr1 welded tube is widely used for heating elements and exhaust tube.

  2. Gr2 welded tube is commonly for heat exchanger and condenser using.

Specification: Outside diameter: 6.0mm-76.1mm, Wall thickness: 0.35mm-2.0mm, Length: According to your own requirements.

Tolerance: As per executive standard requirements, for those tubes which require high precision, we can make according to your own tech requirements.

Heat treatment: In-line bright annealing.

Advantage: Well-proportioned wall thickness and high precision wall thickness.

Information: Beside the normal executive standard, we could also make the welded titanium tube according to your own requirements, we will do our best to support you.


Material

Titanium, Gr1 & Gr2

Standard

ASTM B338

Outside diameter

6.0 mm-76.1   mm

Wall thickness

0.35 –   2.0 mm

Length

As per your requirements

NDT Testing

Available   Pneumatic, Eddy Current, Hydrostatic, U.T. Testing acc to your requirements.

Application

Heat Exchanger,   Condenser, Sea Water Desalinization, Petroleum, Chemicals, Medical Appliance,   Ship Building, Papermaking, Food Processing, Fluid Transportation Piping,   Automobile Exhaust Pipe etc.



Grade

Chemistry Composition %   (MAX)

Fe

O

H

N

C

Residual each

Residual ttl

Ti

Gr1

0.20

0.18

0.015

0.03

0.08

0.10

0.40

BAL

Gr2

0.30

0.25

0.015

0.03

0.08

0.1

0.40

BAL





Grade

Mechanical Property

T.S.(MPa)

Y.S.(MPa)

A% in 50mm

Gr1

Min 240

138 – 310

Min 24

Gr2

Min 345

275 – 450

Min 20
